■Overview of the Protocol

Relationship

the Relationship between Message Sets and Protocol

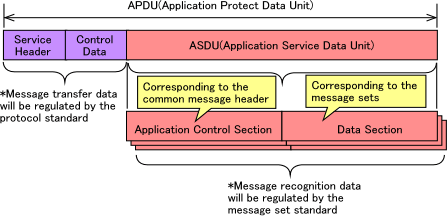

 The relation between message set and protocol is shown in the following figure. where the protocol standard and the message set standard specify, for example, the control data and the data section, respectively.


Dataset and Protocol

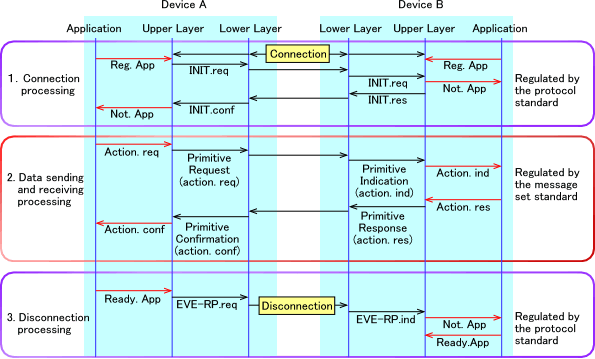

 In terms of communication processing, the connection and disconnection processing is specified in the protocol standard, and the data sending and receiving processing is specified in the message set standard.


connection image between devices
